120KG Per Door Capacity Top Hung Sliding Door Track Gear System

SKU: 753569509070

£54.98

Selection Part Explanation

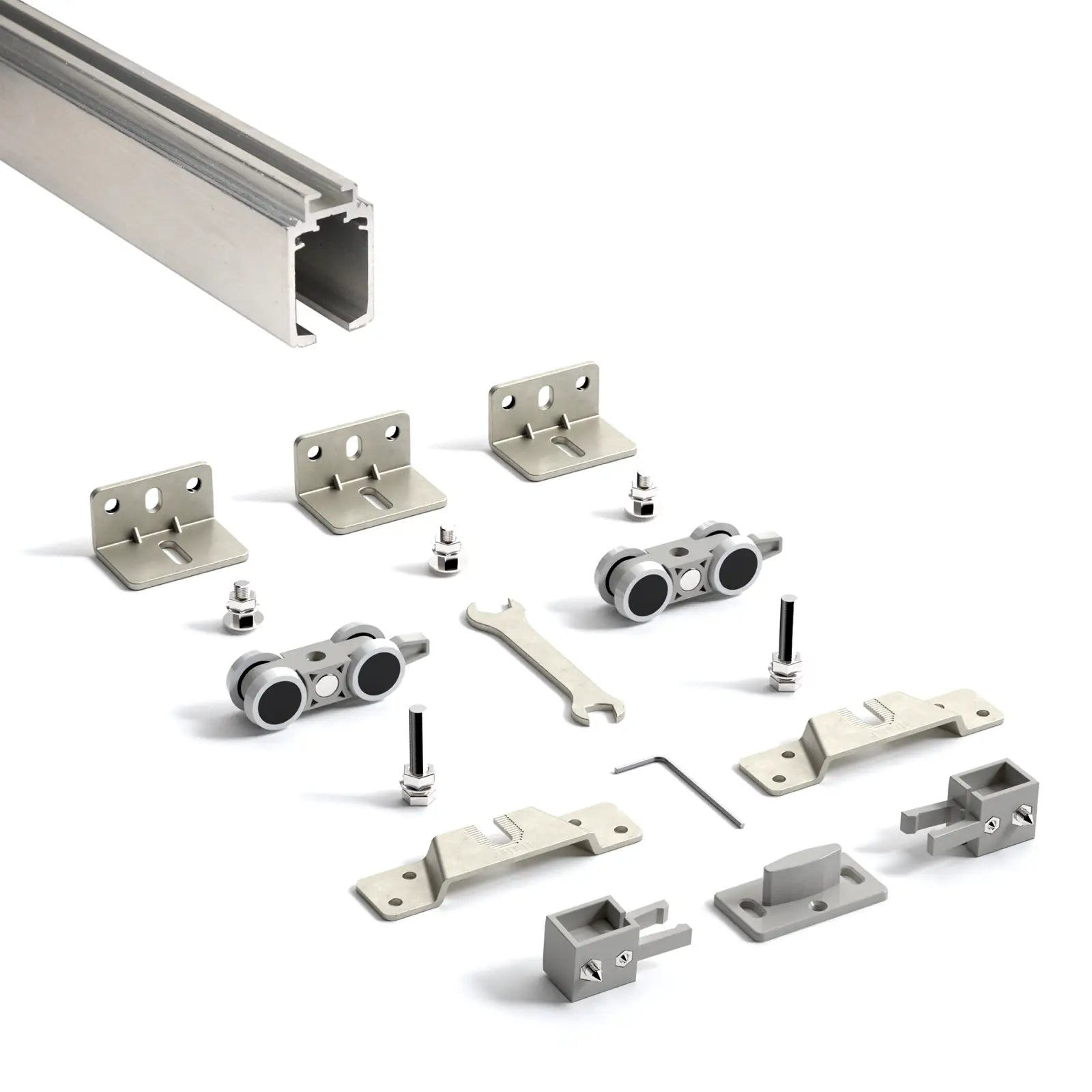

- 1200mm System: 1200mm Aluminium Rail + 1 Set of Gear Pack for 1 door application + Wall Brackets(Set of 3)

- 1500mm System: 1500mm Aluminium Rail + 1 Set of Gear Pack for 1 door application + Wall Brackets(Set of 3)

- 1800mm System: 1800mm Aluminium Rail + 1 Set of Gear Pack for 1 door application + Wall Brackets(Set of 3)

- 2000mm System: 2000mm Aluminium Rail + 1 Set of Gear Pack for 1 door application + Wall Brackets(Set of 3)

- 2400mm System: 2400mm Aluminium Rail + 1 Set of Gear Pack for 1 door application + Wall Brackets(Set of 3)

- 3000mm System: 3000mm Aluminium Rail + 1 Set of Gear Pack for 1 door application + Wall Brackets(Set of 3)

- Additional Gear Pack for 1 door: Optional gear pack for additional door applications . (i.e. you need to add it if you want to use the system for 2 doors application.)

- Add Track Cover for 1200mm System: 1200mm Aluminium Track Cover ( Add it if you need Track Cover for aesthetics purpose)

- Add Track Cover for 1500mm System: 1200mm Aluminium Track Cover ( Add it if you need Track Cover for aesthetics purpose)

- Add Track Cover for 1800mm System: 1200mm Aluminium Track Cover ( Add it if you need Track Cover for aesthetics purpose)

- Add Track Cover for 2000mm System: 1200mm Aluminium Track Cover ( Add it if you need Track Cover for aesthetics purpose)

- Add Track Cover for 2400mm System: 1200mm Aluminium Track Cover ( Add it if you need Track Cover for aesthetics purpose)

- Add Track Cover for 3000mm System: 1200mm Aluminium Track Cover ( Add it if you need Track Cover for aesthetics purpose)



  • System is working silent and made to last because of high quality ball bearings.

  • Maximum carrying capacity is 120 kg per door.

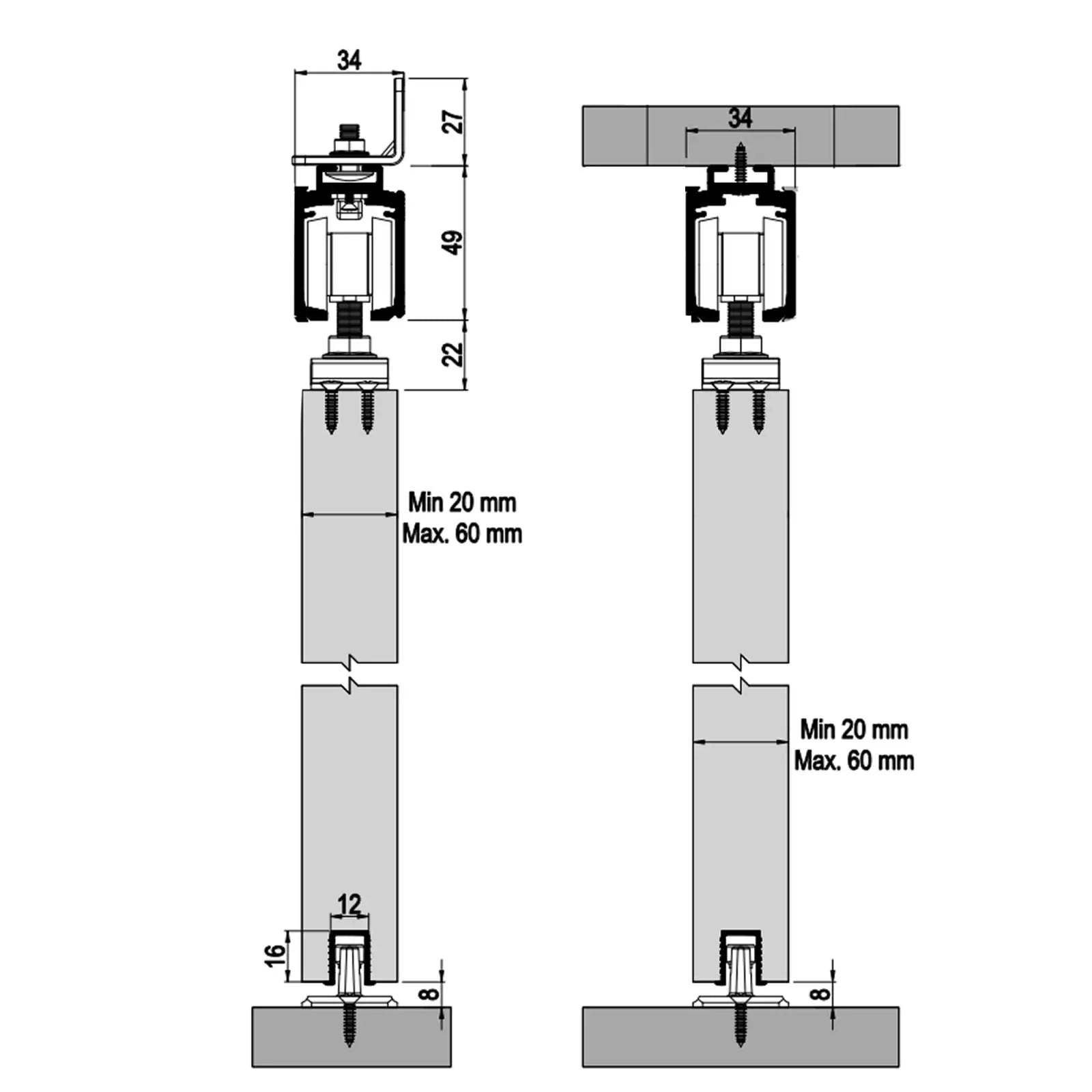

  • Able to use  for 2 / 3 / 4 doors application with neccessary track and gear pack and to use 20 - 60  mm of door thickness.

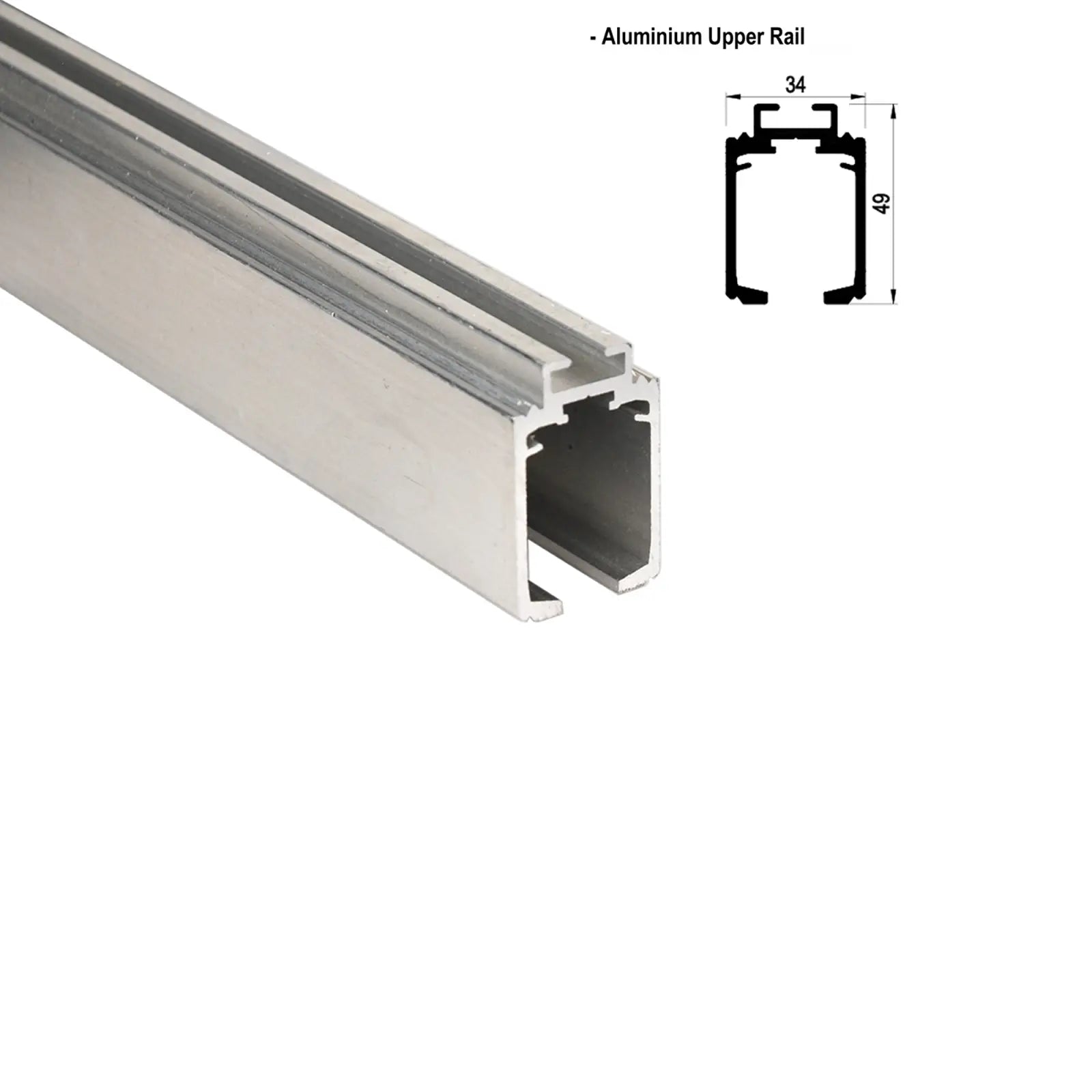

  • Aluminium rails can be cut to size easily.

  • Roller will give you chance to adjustment of height of door.
