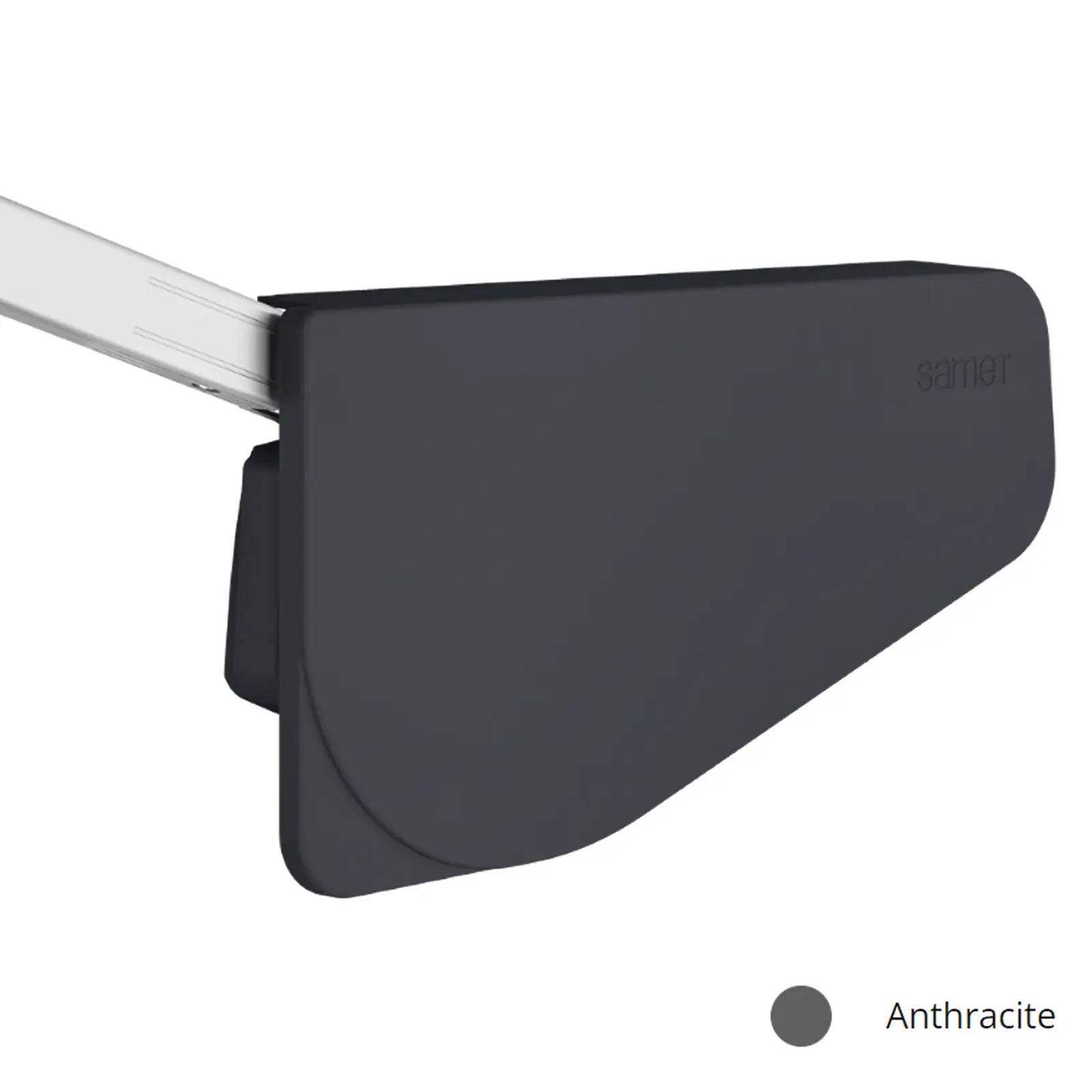

MultiMech Bi-Fold Cabinet Door Lift Up Mechanism - Anthracite

MultiMech Bi-Fold Cabinet Door Lift Up Mechanism - Anthracite

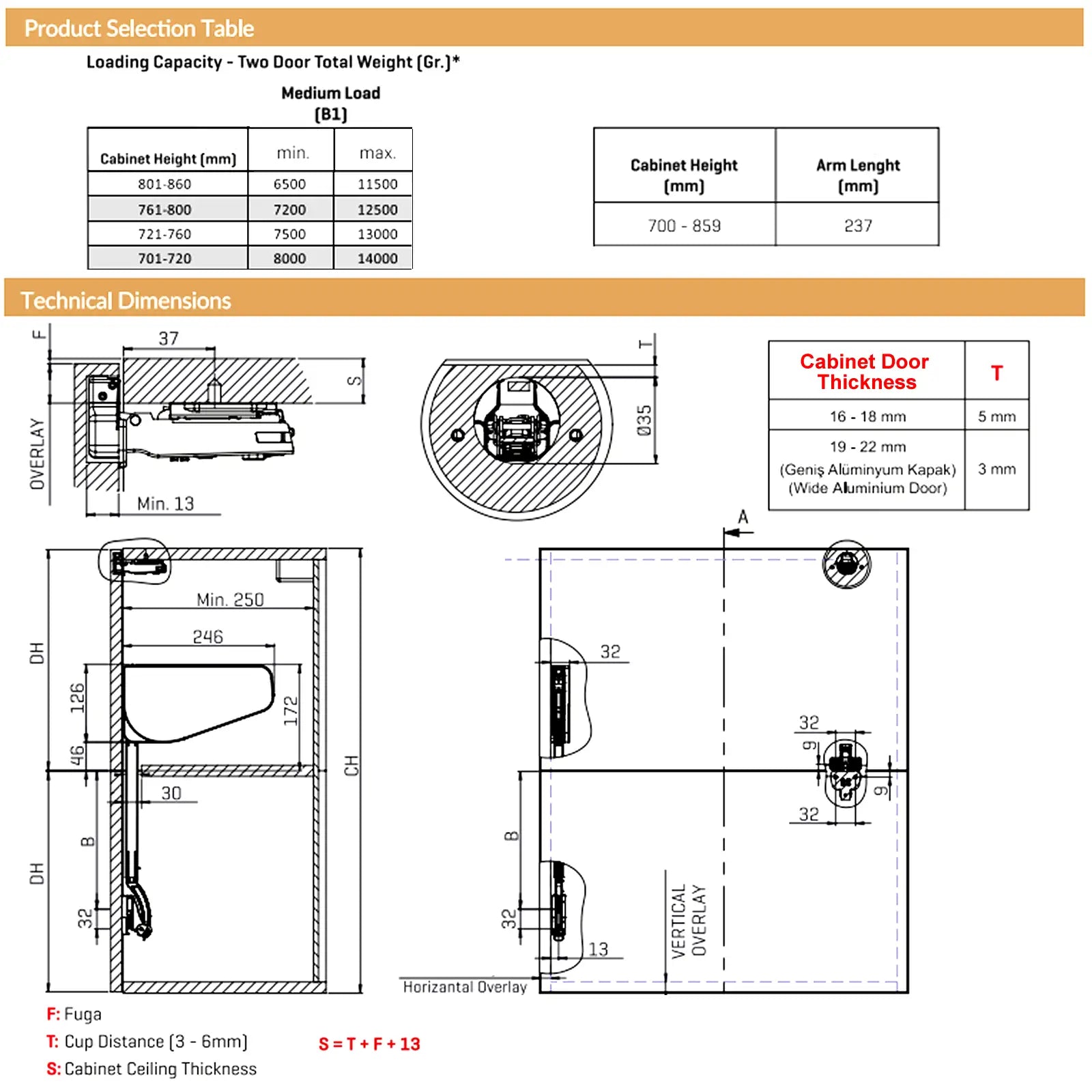

700 - 859mm Height Cabinet Doors - 6.5- 14kg Weight Doors

Front height: 480 – 1040 mm
Width up to 1200 mm
Dynamic load: up to 32 kg (Three different power units: A1/B1/C1)

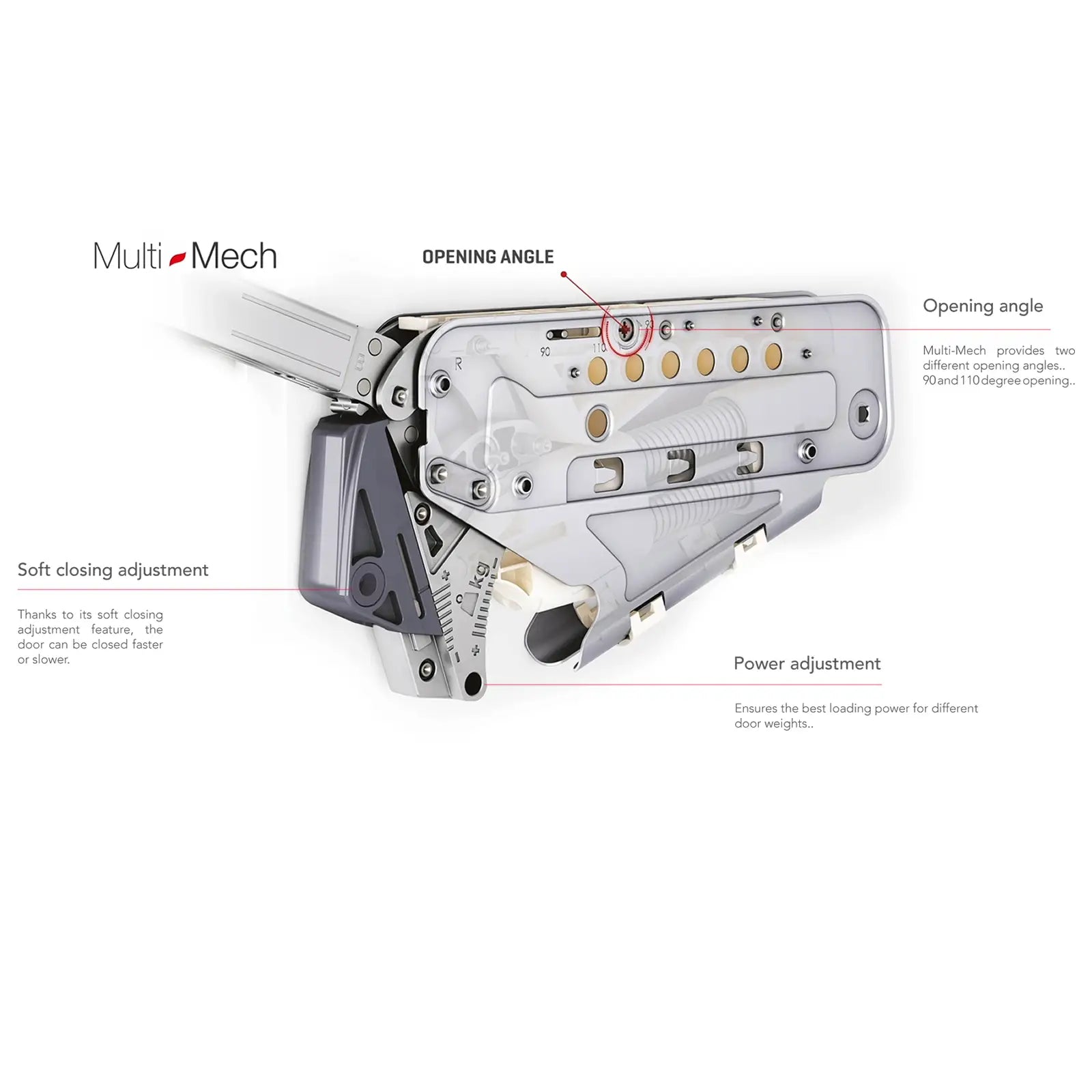

Power and closer adjustment
Finger protection
4 different telescopic arm lengths
Opening angle 90 and 110 degrees

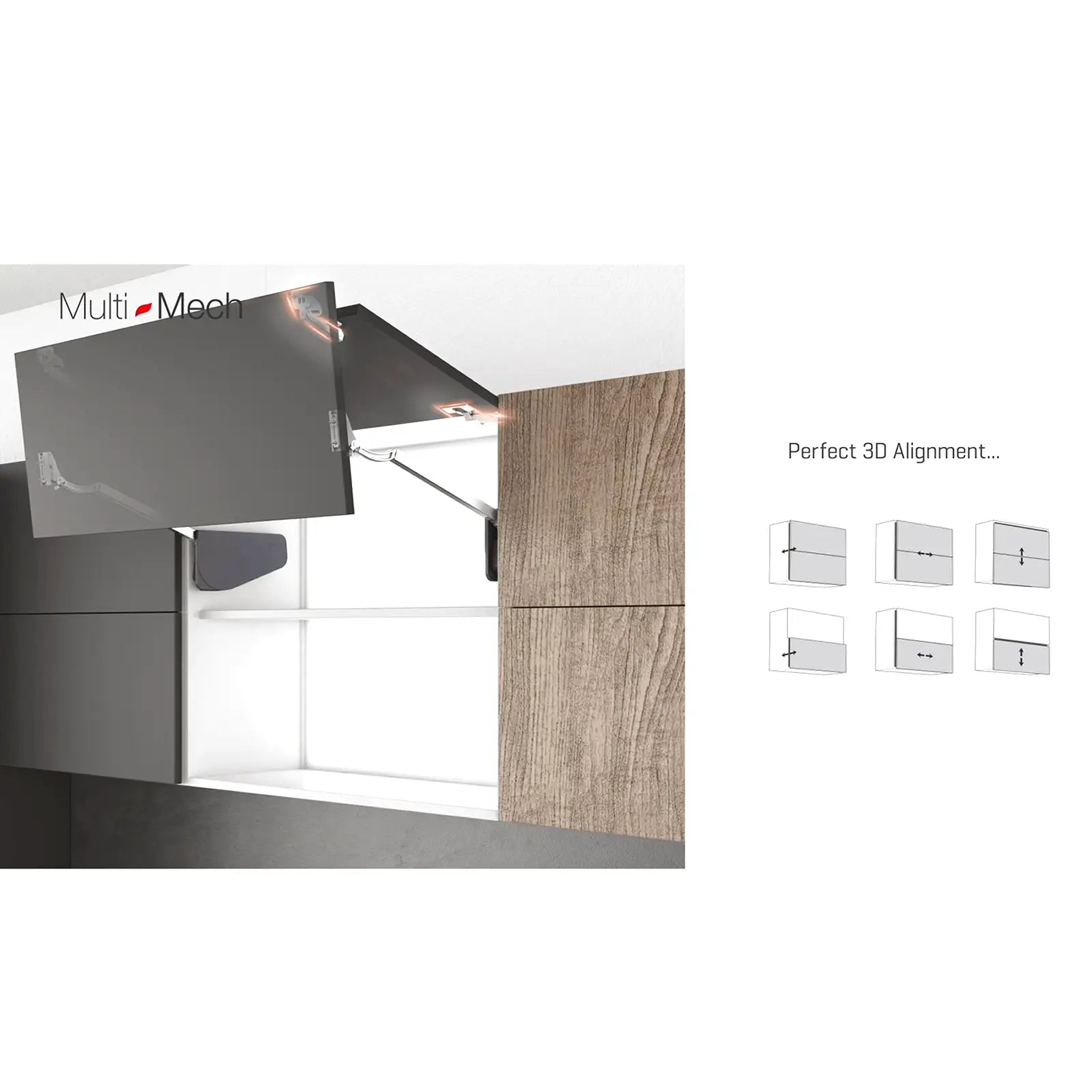

Top front adjustment: in height (+/-2 mm) – in width (+/-2 mm) – in depth (+/-2 mm
) mm)–by depth (+/-2 mm)
