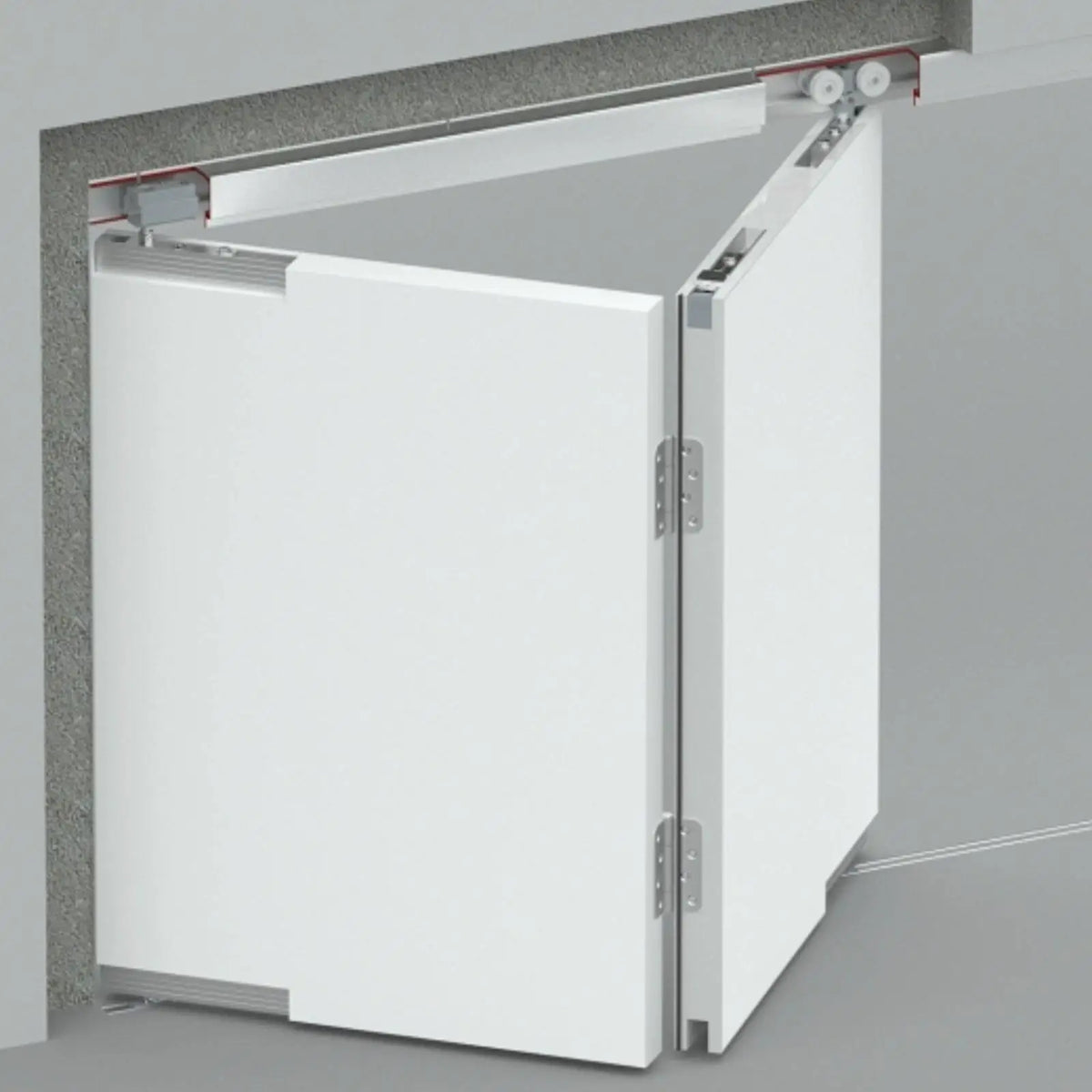

Top Hung Sliding Bi Fold Multi Fold Door Gear Track Kit
High Quality Ball Bearings Top Carrier Sliding Wooden Door System Gear for Bi Fold or Multi Fold Sliding Doors Up to 8 Door application, up to 160kg Per Door Capacity, Up to 3000mm Long Upper and Bottom Rail
Selection Part Explanation

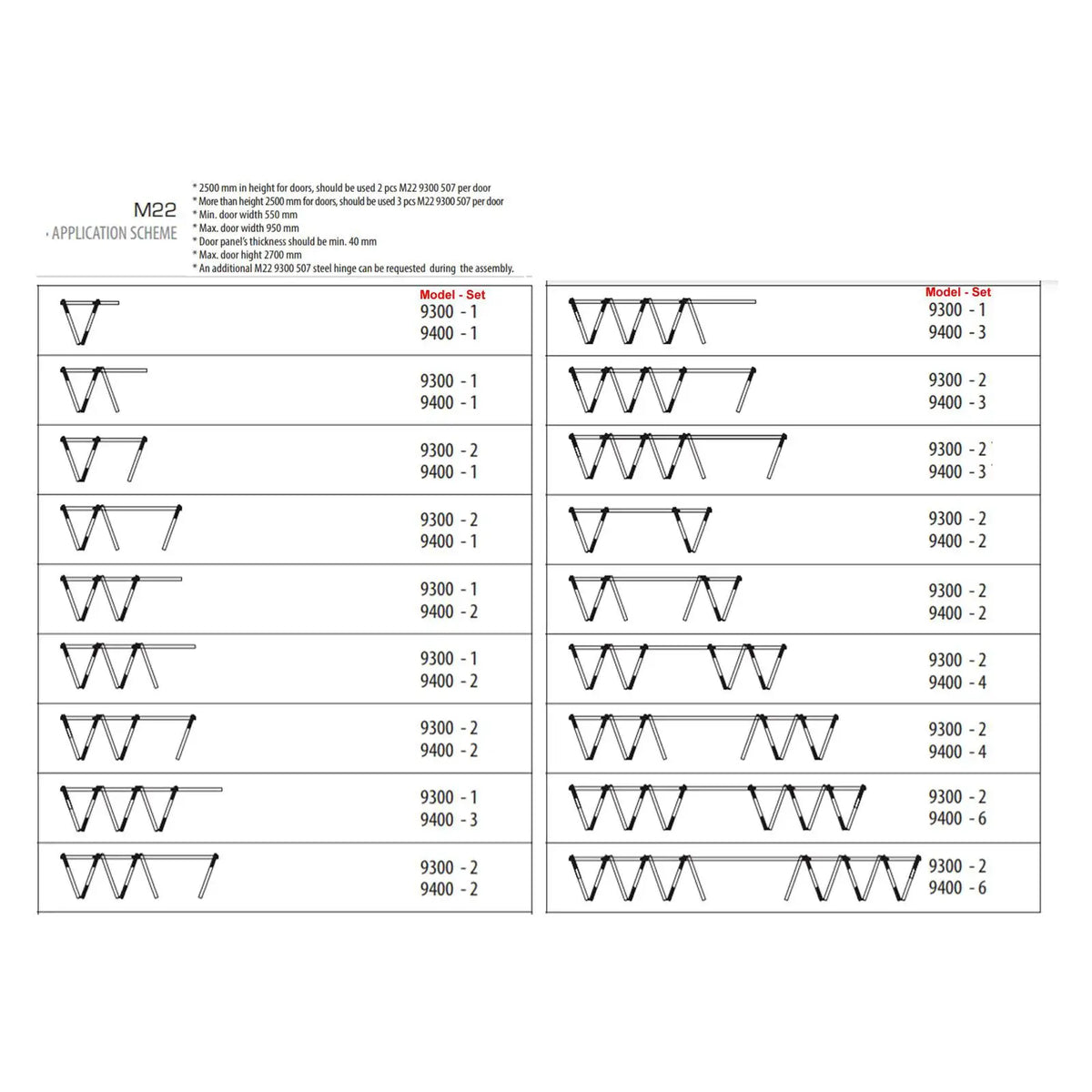

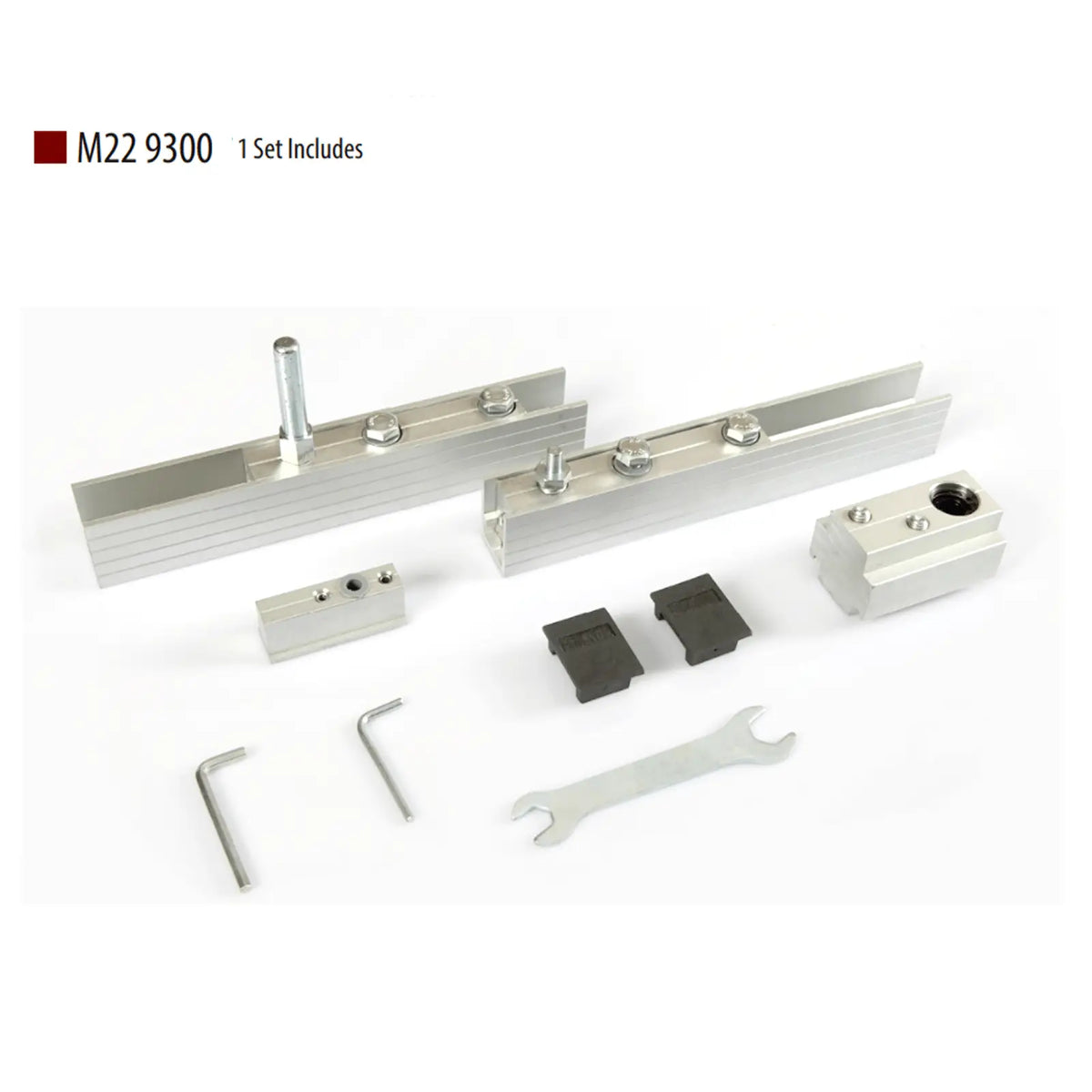

- 9300 - Gear Kit for Fixed Wing: This is gear pack for the door panel which is gonna used as pivot end of the doors. (Please check application scheme to understand how many gear pack you need for your application.)

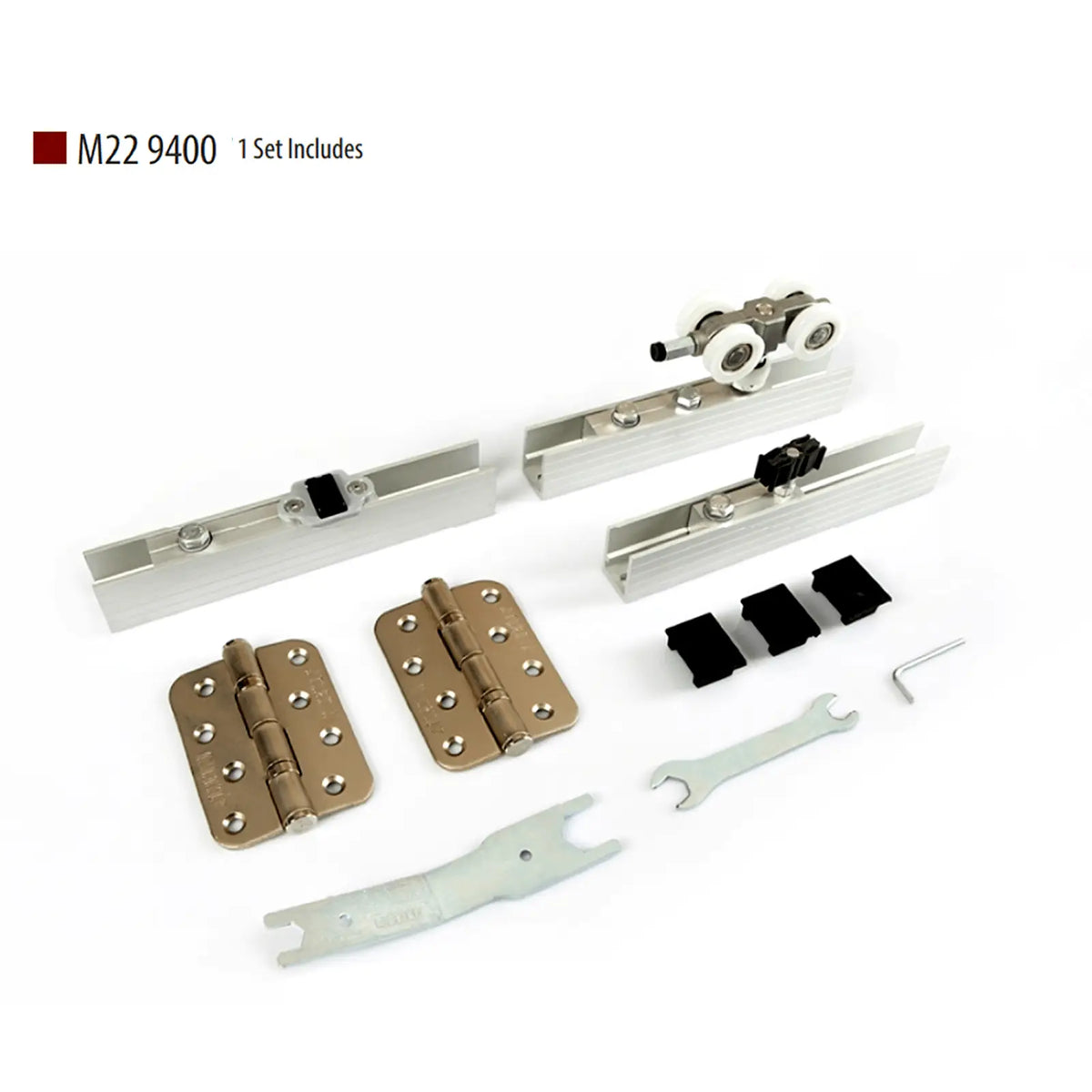

- 9400 - Gear Kit: This is gear pack for the additional door panels. (Please check application scheme to understand how many gear pack you need for your application.)

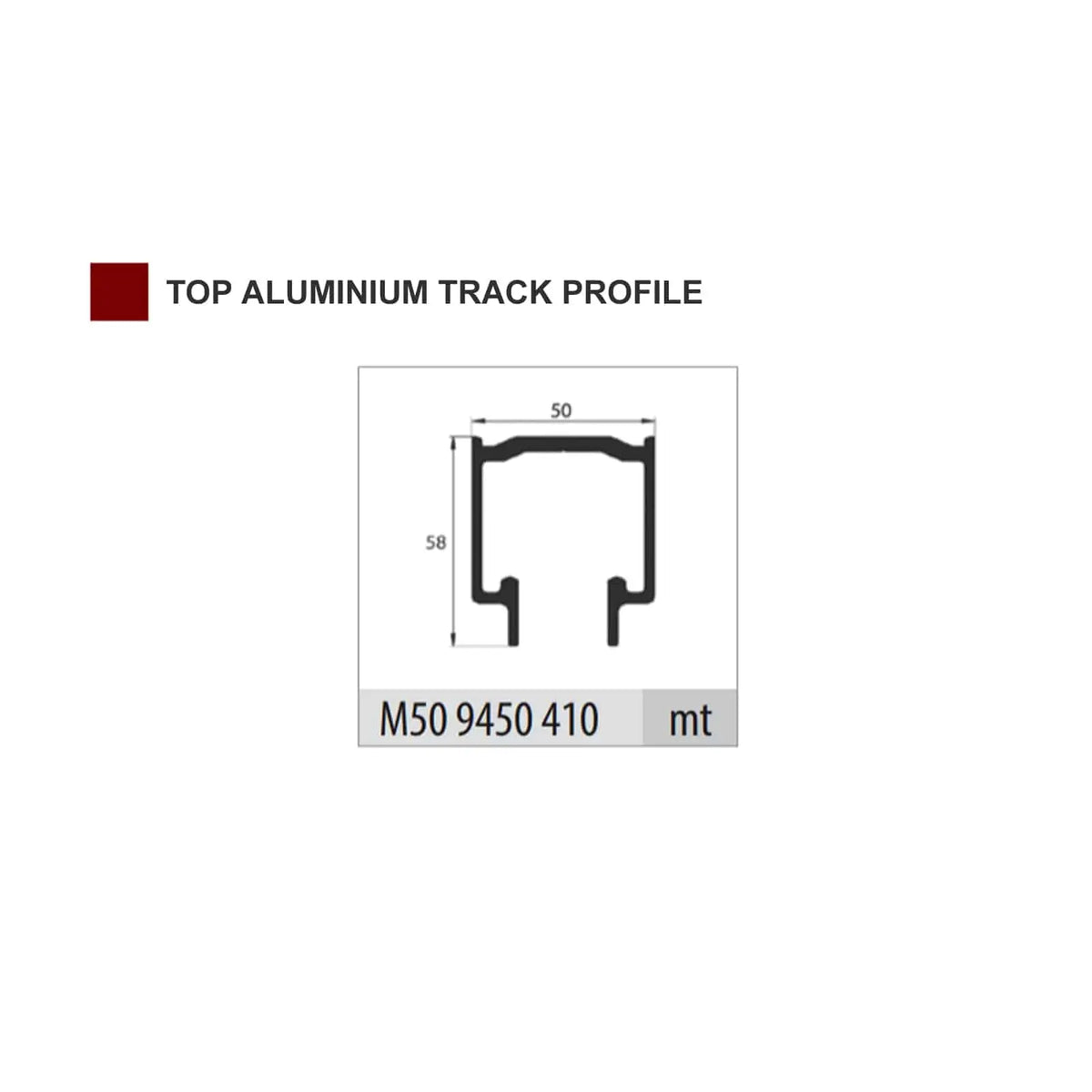

- 3Metre Top Aluminium: Top Aluminium Track, can be cut to size.

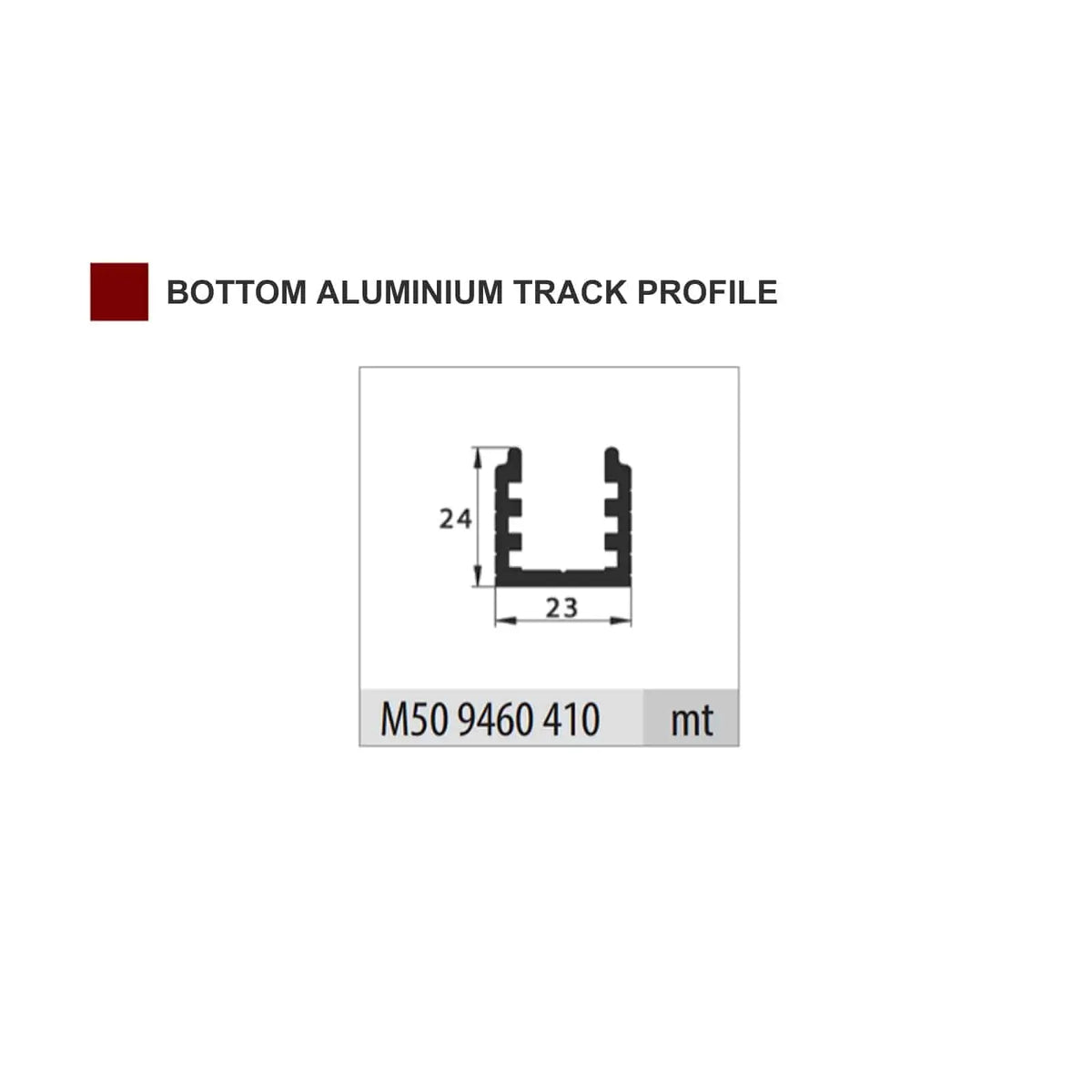

- 3Metre Bottom Aluminium: Bottom Aluminium Track, can be cut to size.
System is working silent and made to last because of high quality ball bearings.
Maximum carrying capacity is 160 kg per door.

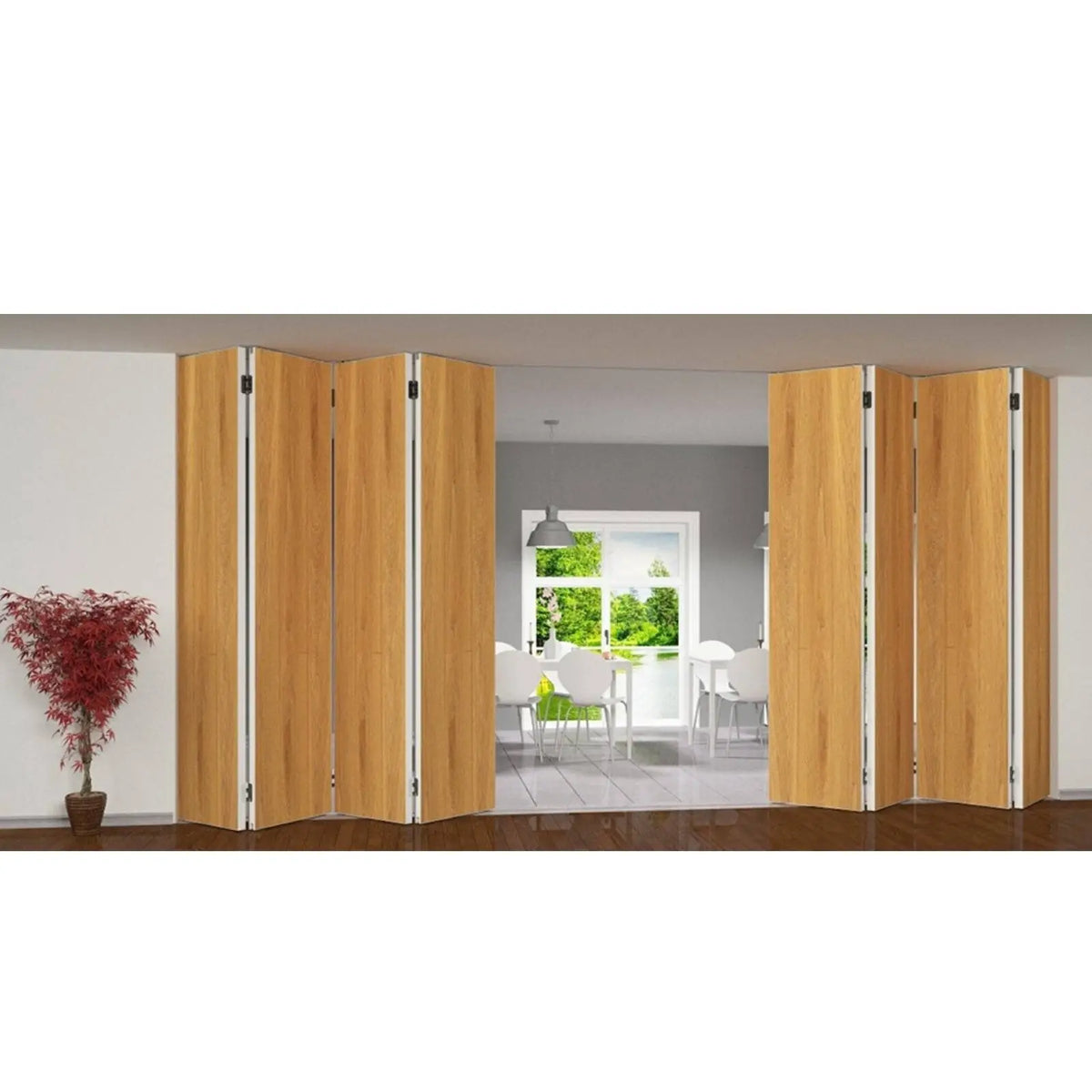

Able to use up to 8 doors application and to use min 40mm of door thickness.
Able to use with bottom rail or without bottom rail
Able to adjust up and down
Aluminium Rails can be cut to size easily.
We can also manufacture handles to customers' own requirements from a choice of designs and materials.
